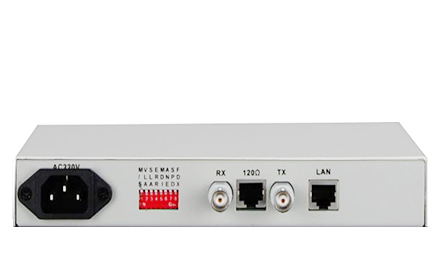

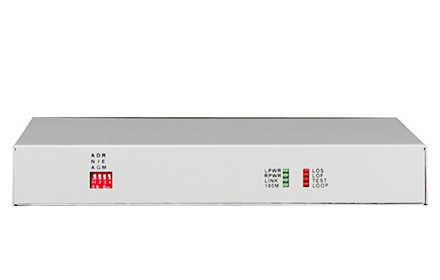

Description:This interface converter provides one unfr
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
Interface rate: 10/100 Mbps half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
PoE standard: IEEE 802.3af / at
PoE Type: End Crossing Method (optional
intermediatebridging method)
PoE Port Features: Port output power 15.4W /
25.5W
PoE transmission core: 1/2 + 3/6-pair (optional 4/5
+ 7/8-pair)
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
